Install

Warning 1. Usually the receiver and transmitter have been paired with each other in factory. If not, please reprogram them. 2. Reset before you want to change the operating mode. 3. After reset, all the remote controls cannot work anymore. 4. Replace the battery in time when the remote transmitter voltage is low. To...

Wiring

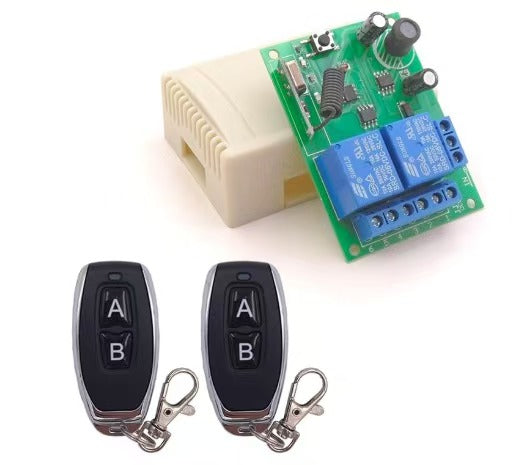

Wiring ReceiverWorking voltage  :  DC 5V~30VInput vlotage  :  1~250VOutput vlotage  :  1~250VQuiescent Current  :  <5MAMax current  :  10AMax load:   300WRF frequency  :  433MHzPin  :  NO / COM / NCWorking temperature  :  -30~+80Receiving Sensitivity  :  >97dbmAmount of storage remote controls  :  25 piecesSupport encoding  :  1527 Leaning code /2262 fixed codeRF Operating mode  :  ASK superheterodyne wireless reception

Wiring Receiver: Receiver Operating voltage: AC 85V ~ 250V Input / output voltage: 1 ~ 250V Max current: 10A RF frequency: 433MHz Support encoding: 1527 learning code Receiving sensitivity:> 97dbm RF working mode: ASK superheterodyne wireless reception Working temperature: -30 ~ + 80 Reception range: The open space is more than 50 meters Quiescent...
